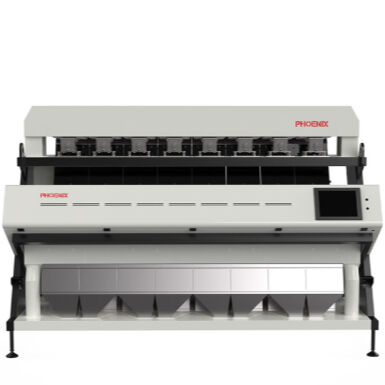

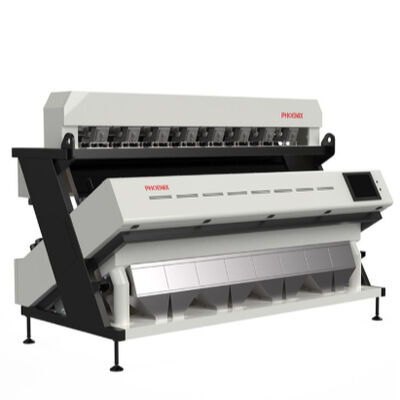

Z RGB Rice Color Sorter Machine 220V With 64 Nozzles Per Channel

Name: Z RGB Rice Color Sorter Machine 220V With 64 Nozzles Per Channel
Brand: HEFEI RAY SIGHT VISION TECHNOLOGY CO., LTD
SKU: Z RGB Sorter
Availability: InStock

Brand Name:	PHOENIX
Model Number:	Z RGB Sorter
MOQ:	1
Price:	Price Negotiable
Payment Terms:	D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Hefei

Power:

0.9

Voltage:

220V ~ 50/60Hz

Dimension:

1255×2199×2076

Weight:

680

Condition:

New

Highlight:

RGB Rice Color Sorter Machine

RGB Rice Color Sorter Machine 220V

64 Nozzles Rice Color Sorter

Product Description

Z RGB Sorter Economical RGB Camera Optical Sorting System With 64 Nozzles Per Channel, Rice Color Sorter

Technical Features

An economical optical sorting solution specifically designed for rice
Efficient feeding and spreading realize uniform single-layer distribution of rice, minimizing overlap to the greatest extent
Sealed sorting chamber and electrical box, with industrial-grade dust-proof design, suitable for high-dust environments
Mature and reliable integrated dust removal control system, ensuring reliable continuous operation
Modular design, with the number of chutes selectable from 1 to 12 (1/4/6/8/10/12), matching different production capacity requirements

Cost-Effective 3-in-1 Inspection System

High-Resolution RGB Camera System
High-Intensity LED Illumination System
Superb precision detection to a wide range of defects of rice by color, size and shape:
- Discolored Grains: Yellow rice, red rice, black/dark spots
- Diseased/Moldy Grains
- Broken/Cracked Grains
- Immature Grains/Green Rice
- Foreign Materials: Husks, straw, stones, glass, plastic, metal

Z RGB Rice Color Sorter Machine 220V With 64 Nozzles Per Channel 0

Specifications

Model	Chute	Air Nozzle	Air Pressure (MPa)	Air Consumption (L/min)	Power (kW)	Voltage	Dimension (L×W×H)(mm)	Weight* (kg)
Z1	1	64	0.6~0.8	<1000	0.9	220V ~ 50/60Hz	1255×2199×2076	680
Z4	4	256	0.6~0.8	<2000	2.9	220V ~ 50/60Hz	2170×2199×2076	1150
Z6	6	384	0.6~0.8	<3000	4.4	220V ~ 50/60Hz	2800×2199×2076	1480
Z8	8	512	0.6~0.8	<4000	5.9	220V ~ 50/60Hz	3430×2199×2076	1840
Z10	10	640	0.6~0.8	<5000	7.3	220V ~ 50/60Hz	4070×2199×2076	2180
Z12	12	768	0.6~0.8	<6000	8.8	220V ~ 50/60Hz	4835×2199×2076	2550
