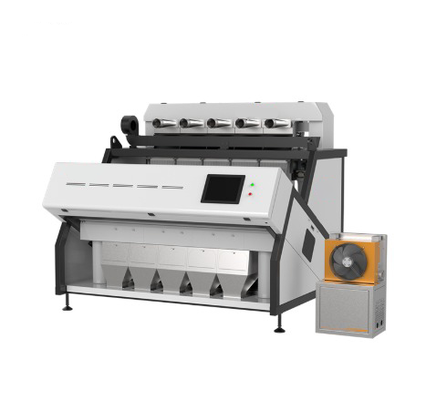

64 Nozzles Cashew Sorting Machine SWIR Cashew Nut Grading Machine

Name: 64 Nozzles Cashew Sorting Machine SWIR Cashew Nut Grading Machine
Brand: HEFEI RAY SIGHT VISION TECHNOLOGY CO., LTD
SKU: Monarch VGN SWIR
Availability: InStock

Brand Name:	PHOENIX
Model Number:	Monarch VGN SWIR
MOQ:	1
Price:	Price Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Hefei

Model:

Monarch VGN1

Chute:

Air Nozzle:

Air Pressure (MPa):

0.6~0.8

Highlight:

64 Nozzles Cashew Sorting Machine

SWIR Cashew Nut Grading Machine

SWIR Cashew Sorting Machine

Product Description

Monarch VGN SWIR Sorter Dual-band SWIR Enables Premium Detection To Shell, Defect And FM By Color, Size, Shape And Chemical Composition

Technical Features

Tailored Sorting Solution for Premium Nut Processors

Sealed scanning and control boxes provide machine with high-level dust protection
Field-proven Dust Control System and Air Cooling System integrated maintains high operation reliability and performance consistency, and minimizes downtime
High-capacity vibratory feeder System evenly distributes nuts into a single layer to minimize overlapping
Modular design of vertical frame size from 1 to 8 chutes (1/3/5/8) provides processors more flexibility

Premium 4-in-1 Multispectral Inspection System

Dual-Band InGaAs-SWIR Camera System
High-Resolution RGB Camera System
High-Stability Air-Cooled Halogen Lighting System
High-Intensity LED Illumination System
Premium precision detection to various detects of nuts by color, size, shape and chemical composition or moisture levels for premium nut processors, with distinct advantages compared to traditional RGB visible-light sorting:
Deeper defect detection beyond surface-level: hidden mold, insect damage, rancidity that RGB cameras miss
Superb removal of shell fragments and pit residues with higher accuracy
Better recognition of plastics, stones, glass and metal even if color-matched to nuts
Enhanced detection of early-stage mold & aflatoxin invisible to RGB cameras
Increased throughput and efficiency with minimal human intervention

High-Performance Ejector System

Engineered for enhanced durability, optimized speed and air consumption
Accurate rejection and reliable performance at high-capacity sorting
Significant reduction in false rejection rate and total cost of ownership

Specifications

Model	Chute	Air Nozzle	Air Pressure (MPa)	Air Consumption (L/min)	Power (kW)	Voltage	Dimension (LWH, mm)	Weight* (kg)
Monarch VGN1	1	64	0.6~0.8	<800	3.3	220V～50/60Hz	1095×1995×1990	720
Monarch VGN5	5	320	0.6~0.8	<4500	7.8	220V～50/60Hz	2450×1850×1943	1460
Monarch VGN8	8	512	0.6~0.8	<5000	10.7	220V～50/60Hz	3302×2004×2025	1932
