HDF AI-powered Optical Sorter with Dual-band SWIR and 400mm Belt Width for Precision Nut Sorting

HDF AI-powered Optical Sorter with Dual-band SWIR and 400mm Belt Width for Precision Nut Sorting

Brand Name:	PHOENIX
Model Number:	HDF
MOQ:	1
Price:	Price Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Hefei

Model:

HWN1

Belt Width (mm):

400

Air Nozzle:

Air Pressure (MPa):

0.6~0.8

Air Consumption (m³/min):

<1.2

Voltage:

220V~50/60Hz

Highlight:

AI-powered Optical Sorter

Dual-band SWIR Nut Sorting Machine

400mm Belt Width AI Sorter

Product Description

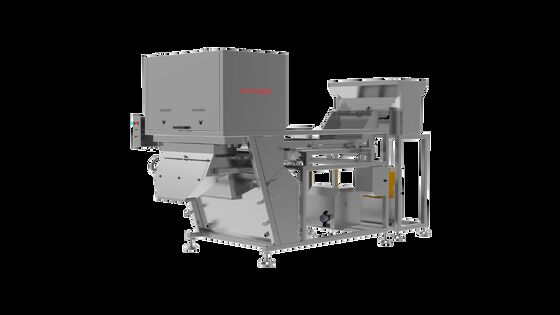

HDF Intelligent Optical Sorter – Revolutionizing Nut Sorting with AI

The HDF Intelligent Optical Sorter combines artificial intelligence with advanced optical technology to deliver comprehensive and precise sorting of surface, chemical, and internal quality for high-end nut processors. This innovative solution enhances product quality, operational efficiency, and food safety standards.

Technical Specifications

Model	Belt Width (mm)	Air Nozzle	Air Pressure (MPa)	Air Consumption (m³/min)	Voltage	Power (kW)	Dimension (mm)	Unpacked Weight (kg)
HWN1	400	80	0.6~0.8	<1.2	220V~50/60Hz	5.2	3960×1201×2415	960
HWN2	800	160	0.6~0.8	<2.4	220V~50/60Hz	6.3	3960×1601×2415	1185
HWN3	1200	240	0.6~0.8	<3.6	220V~50/60Hz	7.5	3960×2001×2415	1340

Core Advantages: AI + Dual-Band SWIR + RGB Optical System

AI-Powered Deep Learning Algorithms

Continuously optimized with new samples, defect recognition becomes more accurate over time through machine learning.

Dual-Band SWIR Camera System

Breaks through visible light limitations to detect chemical composition and moisture content with precision.

High-Resolution RGB Color Imaging

Precisely captures color, size, and shape information for comprehensive surface analysis.

Multi-Dimensional Detection

Integrates color, shape, chemical composition, moisture, and other data, significantly surpassing traditional RGB sorter accuracy.

Exceptional Optical Sorting Capabilities

Deep Defect Detection

Identifies hidden mold, insect damage, and rancidity undetectable by RGB cameras
Enhanced early detection of aflatoxin to prevent risks proactively

Ultra-Precise Foreign Material Removal

Reliably removes plastics, stones, glass, and metals similar in color to nuts
Ultra-high precision in identifying shell fragments and pit residues, reducing impurity rates

Efficiency and Stability

High-capacity operation with industry-leading sorting speed
Minimal manual intervention, continuously reducing labor costs

Built for Demanding Production Environments

Industrial dust-proof design: Sealed sorting chamber and electrical cabinet, resilient in high-dust environments
Integrated dust removal and air-cooling systems: Ensures continuous and stable operation
Efficient vibrating feeding system: Achieves single-layer uniform distribution of nuts, reducing overlap and improving detection accuracy
Modular flexible configuration: Belt widths of 400/800/1200mm available to adapt to different production line capacities

High-Performance Ejection and Intelligent Control

Advanced ejection technology combined with intelligent control systems ensures precise removal of defective materials while maintaining optimal throughput and operational efficiency.
