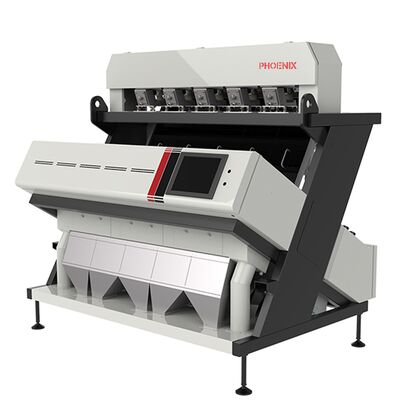

VR Series Mung Bean Color Sorter: AI 4D defect detection, dust-proof modular design, 1-12 config channels, precision ejection minimal loss, smart multi-language remote platform.

Intelligent Red Bean Color Sorter Solution: Precision Recognition, Premium Sorting

In the increasingly competitive red bean processing market, quality and efficiency are the core factors determining a company’s competitiveness. Our newly launched red bean dedicated intelligent optical color sorter, built on a customized hardware architecture and cutting-edge AI optical sorting technology, enables full-process precision control, helping enterprises improve quality, increase efficiency, boost production, and expand capacity.

I. High‑Stability Sorting System Designed for Red Beans

Targeting the characteristics of red bean kernels—their round shape, varied seed coat colors, and the dusty processing environment—we have developed a highly adaptable and stable hardware system:

• Uniform Feeding, No Overlap: A high‑efficiency vibratory feeder combined with an optimized chute design ensures red beans are spread in a single, uniform layer, effectively preventing misjudgments caused by kernel stacking and laying a solid foundation for subsequent high‑precision recognition.

• Enhanced Dust Protection: The sorting chamber and electrical cabinet feature a fully sealed structure with an integrated dust removal system. This effectively copes with the dusty conditions common in red bean processing, ensuring stable operation even in high‑dust environments while significantly reducing maintenance frequency and downtime.

• Modular Channel Configuration: Supports flexible combinations of 1–12 channels (options: 1/2/4/6/8/10/12 channels), meeting diverse needs ranging from laboratory sampling to large‑scale industrial production, and allowing easy expansion based on capacity requirements.

II. AI‑Driven Four‑Dimensional Recognition System for Precise Defect Targeting

Based on a proprietary deep learning algorithm and tailored to the unique optical properties of red beans, the system achieves multi‑dimensional fine recognition of both appearance and internal quality:

• High‑Definition Imaging System: Equipped with high‑resolution RGB industrial cameras and custom high‑brightness multi‑spectral LED light sources to accurately capture subtle differences in seed coat color. Optional near‑infrared (NIR) or short‑wave infrared (InGaAs‑SWIR) cameras can penetrate the seed coat to identify internal insect damage, mold, and moisture anomalies, achieving “inside and out” quality control.

• Multi‑Dimensional Feature Fusion: Integrates four key dimensions—color, size, shape, and texture—to accurately identify various defects and foreign materials:

  • Discolored Kernels: Precisely removes kernels affected by mold, oxidation, immaturity, and abnormal colors (e.g., yellowish or dark), ensuring uniform color in the final product.

  • Damaged Kernels: Effectively identifies broken, cracked, and mechanically damaged kernels, enhancing product integrity.

  • Insect‑Damaged and Spotted Kernels: High‑sensitivity detection of insect holes, mold spots, and bacterial infection areas to ensure food safety.

  • Foreign Materials: Efficiently removes stalks, pod shells, stones, glass, plastic, metal, and other contaminants, purifying the final product.

• Flexible Parameter Configuration: Sorting standards and sensitivity can be customized according to different red bean varieties (e.g., small red bean, large red bean), different finished product grades, and specific customer requirements, truly enabling “one machine for multiple uses, precise sorting.”

III. High‑Speed Ejection System for Precise Removal Without Damaging Good Beans

A new generation of high‑frequency pneumatic ejection valves provides microsecond‑level response speed, exceptional durability, and low energy consumption, delivering precise ejection even at high throughput. By optimizing ejection timing and airflow intensity through intelligent algorithms, the system effectively reduces the carryover rate and physical loss of good beans. While ensuring ejection accuracy, it maximizes the integrity and yield of high‑quality red beans, achieving a perfect balance between precise sorting and cost control.

IV. Intelligent Interactive Platform for Convenient Management

Equipped with a 15‑inch industrial touchscreen and user‑friendly operating system, the platform significantly enhances user experience and management efficiency:

• Multi‑Language Interface, Intuitive and Easy to Use: The graphical interface lowers the operational threshold, accommodates diverse teams, and allows even novice operators to get started quickly.

• One‑Touch Parameter Switching: Pre‑loaded with recipes for various red bean varieties and sorting standards enables one‑click adaptation to different batches, varieties, and processing requirements, facilitating rapid changeover in production planning.

• Remote Support and Data Management: Supports remote monitoring, debugging, and firmware upgrades. Provides data dashboard analysis functions (e.g., throughput, carryover ratio, defect rate statistics), enabling intelligent operation and maintenance as well as data‑driven decision support, helping enterprises advance their digital management transformation.

Core Value Proposition

This solution delivers quantifiable and sustainable comprehensive benefits for red bean processing enterprises:

• ✅ Enhanced Finished Product Purity: Precisely removes discolored kernels, defective kernels, and various impurities, upgrading product grades to meet high‑end market and export standards, thereby enhancing brand premium.

• ✅ Reduced Sorting Costs: Decreases reliance on manual sorting, lowers misjudgment rates, and minimizes material loss, effectively controlling overall production costs.

• ✅ Ensured Food Safety: Infrared technology identifies internal mold and insect damage, eliminating problematic raw materials at the source, protecting consumer health and corporate reputation.

• ✅ Increased Capacity and Efficiency: High‑speed processing capability combined with high‑stability design ensures long‑term continuous and stable operation, supporting enterprises in achieving large‑scale production and capacity upgrades.
