Pw Rgb Optical Sorter Equipped With A Cost-effective Rgb Camera The Machine Supports High-pressure Washing And Quick Cleaning, With Easy Maintenance.

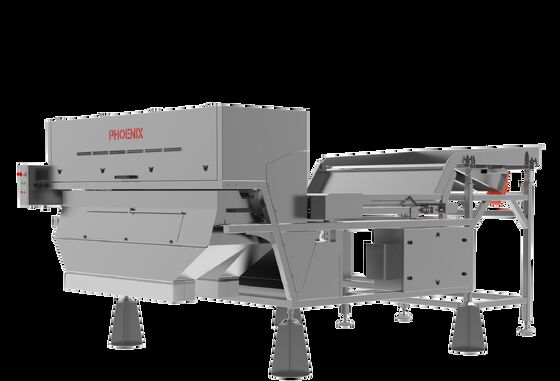

                          PW RGB Optical Sorter Customized Optical Sorting Solution for Fresh Coffee Cherries

Specially designed for post-harvest processing of fresh coffee cherries, the HFC RGB Optical Sorter adopts a cost-effective RGB camera sorting solution to accurately remove various defective berries and foreign materials, significantly improving the quality and final flavor of green coffee beans. The machine supports high-pressure washing and quick cleaning, with convenient maintenance to meet the stringent hygiene and capacity requirements of food processing enterprises.

Specifications

Core Technical Features

I. Special Design for Fresh Coffee Cherries

• Customized Sorting Logic: Exclusive recognition models built for defective features including unripe green cherries, overripe black cherries, moldy cherries, crushed and cracked cherries, shriveled cherries, and insect-infested cherries.
• Compact Single-Layer Belt Sorting System: Enables fast installation and space saving.
• High-Efficiency Waterproof Vibratory Feeding System: Ensures even spreading of fresh coffee cherries, effectively reduces fruit overlapping and improves sorting accuracy.

II. Food-Grade Hygiene & Convenient Maintenance

• Stainless Steel Reinforced Body: Made of food-grade materials, with fully sealed sorting chamber and electrical box, resistant to high-pressure washing and disinfectants.
• Tool-Free Quick-Release Belt: Detachable without tools for daily deep cleaning, complying with higher food safety standards.
• Integrated Humidity Control System: Mature and reliable, ensuring stable and continuous operation of the equipment in humid environments.

III. Cost-Effective High-Performance Optical Sorting System

• High-Resolution RGB Color Imaging: Captures subtle color and texture differences to identify tiny defects.
• High-Brightness LED Lighting: Delivers clear imaging and uniform illumination, adapting to surface characteristics of different fruit batches.
• Comprehensive Defect Coverage:
• Unripe green cherries (insufficient sugar content)
• Overripe black cherries (risk of excessive fermentation)
• Moldy cherries (white/grey mold spots)
• Crushed and cracked cherries (risk of juice contamination)
• Shriveled and dehydrated cherries (loss of flavor compounds)
• Insect-infested cherries
• Residual branches and leaves
• Foreign materials (stones, plastics, etc.)

IV. High-Efficiency Ejection System

• Optimized Pneumatic Ejection Valves: Balances durability, response speed and low air consumption, maintaining precise ejection even at high output.
• Low False Rejection Rate: Reduces waste of good cherries and lowers overall operating costs.

V. Intelligent Control & Remote Support

• 15-Inch Industrial Touch Screen: Intuitive human-machine interface supporting multi-language switching, with one-key switching of product sorting parameters.
• Full-Range Remote Support:
• Remote access and real-time monitoring
• Performance data dashboard
• Online expert diagnosis
• Interactive troubleshooting

VI. Modular Capacity Options

Belt widths are available in 300 / 600 / 1200 / 1800 mm, flexibly adapting to different processing scales for configurations ranging from small plantations to large processing factories.
