VG Intelligent Optical Sorter AI-powered 4-in-1 Precise Multispectral Inspection System, Delivering Multi-dimensional Defect Identification For Beans By Analyzing Color, Size, Shape And Texture Chara

Brand Name:	PHOENIX
Model Number:	VG AI Optical Sorter
MOQ:	1
Price:	Price Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Hefei

Model:

VG6

Air Pressure (MPa):

0.6~0.8

Power (kW):

4.4

Voltage:

220V~ 50/60Hz

Dimension (LWH)(mm):

2800*2199*2076

Weight*(kg):

1480

Air Consumption (L/min):

<3000

Highlight:

AI-powered beans color sorter

multispectral inspection system for beans

precise defect identification for beans

Product Description

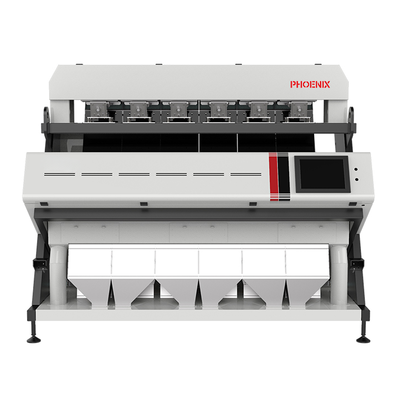

VG Intelligent Optical Sorter

AI-powered 4-in-1 precise multispectral inspection system, delivering multi-dimensional defect identification for beans by analyzing color, size, shape and texture characteristics

Specifications

Model	Chute	Air Nozzle	Air Pressure (MPa)	Air Consumption (L/min)	Power (kW)	Voltage	Dimension (LWH)(mm)	Weight*(kg)
VG1	1	64	0.6~0.8	<1000	0.9	220V~ 50/60Hz	125521992076	680
VG4	4	256	0.6~0.8	<2000	2.9	220V~ 50/60Hz	217021992076	1150
VG6	6	384	0.6~0.8	<3000	4.4	220V~ 50/60Hz	280021992076	1480
VG8	8	512	0.6~0.8	<4000	5.9	220V~ 50/60Hz	343021992076	1840
VG10	10	640	0.6~0.8	<5000	7.3	220V~ 50/60Hz	407021992076	2180
VG12	12	768	0.6~0.8	<6000	8.8	220V~ 50/60Hz	483521992076	2550

Technical Features

Custom Sorting Solution for Beans

High-efficiency vibrating feeder achieves uniform single-layer spread of beans to minimize overlapping
Sealed sorting chamber and electrical cabinet with industrial dustproof design, suitable for high-dust working environments
Mature and reliable integrated dust removal control system for stable long-term operation
Modular structure with chute quantity optional from 1 to 12 (1/4/6/8/10/12), matching various production capacity requirements

AI-empowered 4-in-1 Intelligent Optical Sorting System

Self-developed AI deep learning algorithm that continuously optimizes defect recognition capability with new sample data
High-resolution RGB color imaging system to capture tiny subtle defects
High-brightness LED lighting system guarantees clear and stable imaging quality
Optional NIR camera or InGaAs-SWIR camera

Industry-leading precise defect detection for beans based on color, dimension, contour and texture:

Discolored beans: mildewed, oxidized, underripe or contaminated kernels
Broken / split bean kernels
Worm-eaten beans
Diseased beans: kernels infected with fungal or bacterial spots
Foreign contaminants: straw, stones, glass, plastic, metal debris
Custom parameter settings compatible with multiple bean varieties

High-performance Pneumatic Ejector Rejection System

Optimized structural design balancing durability, ejection speed and air consumption efficiency
Maintains accurate rejection and stable performance under high-throughput sorting conditions
Effectively reduces false rejection rate to cut overall operational costs

15-inch Industrial Touchscreen Control System

Intuitive human-machine interface with multi-language switching support
One-click switching of sorting parameters for different products
Full-range remote support platform
- Remote access and real-time monitoring
- Performance data dashboard
- Online expert diagnosis service
- Interactive troubleshooting function
