| Brand Name: | PHOENIX |
| Model Number: | VFG AI Optical Sorter |
| MOQ: | 1 |
| Price: | Price Negotiable |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |

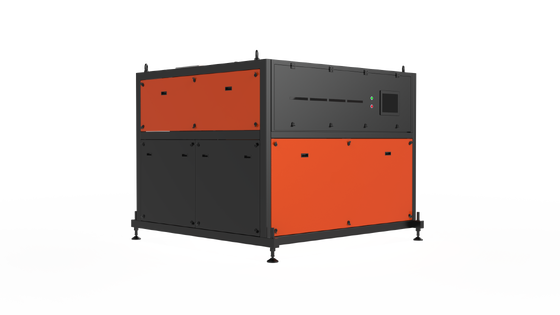

Customized AI sorting solution for dry crushed glass recycling. Powered by deep learning algorithm, the machine identifies glass color, shape and light transmittance to classify target glass types and remove contaminants efficiently. It greatly improves recycled glass purity and market value, supporting high-value glass recycling.
| Model | Chute | Air Nozzle | Air Pressure (MPa) | Air Consumption (m³/min) | Voltage | Power (kW) | Unpacked Weight (kg) | Dimension (mm) |
|---|---|---|---|---|---|---|---|---|
| VFG4 | 4 | 256 | 0.6~0.8 | >2.6 | 220V ~ 50/60Hz | 2.4 | 1500 | 2200×2215×2000 |
| VFG6 | 6 | 384 | 0.6~0.8 | >4.0 | 220V ~ 50/60Hz | 3.5 | 1930 | 2200×2800×1995 |
Dual-mode High-precision Optical Inspection
Equipped with high-res RGB camera, optional NIR near-infrared camera. It distinguishes clear, green, brown, blue glass and detects ceramics, metals, PVC and other foreign materials for full-range inspection.
Self-developed AI Deep Learning Algorithm Engine
Trained with massive material data to simulate manual sorting logic. Stable sorting performance against unstable raw materials with strong on-site adaptability.
Wear-resistant Chute & High-intensity Lighting System
Special alloy chute resists long-term abrasion from glass fragments to extend service life. High-brightness LED lights enhance identification of tiny low-contrast impurities and lower misjudgment rate.
High-performance Pneumatic Ejection System
Self-developed high-speed high-thrust air valves feature fast response and precise ejection. Consistent removal rate under high throughput, balancing production capacity and sorting quality.
