Equipped With Industry-leading HSI Camera System And AI Technology, This Machine Is Specially Developed For Blueberry Sorting.

Brand Name:	PHOENIX
Model Number:	HSF AI-HSI Sorter
MOQ:	1
Price:	Price Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Hefei

Model:

HSF4

Air Nozzle:

256

Air Pressure (MPa):

0.6-0.8

Voltage:

220V~ 50/60Hz

Power (kW):

5.9

Dimension (mm):

4183×2315×2272

Unpacked Weight (kg):

1342

Highlight:

blueberry sorting machine with HSI camera

fruit sorter machine with AI technology

blueberry sorter with industry-leading camera

Product Description

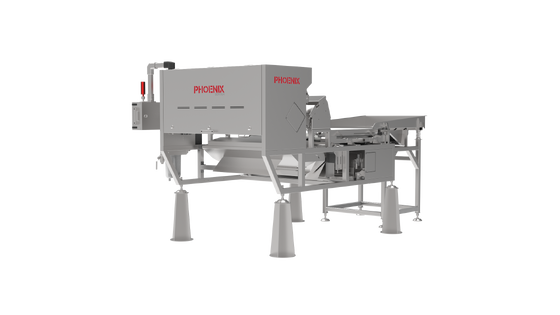

HSF Intelligent HSI Optical Sorter

Equipped with industry-leading HSI camera system and AI technology, this machine is specially developed for blueberry sorting. It delivers high-precision optical detection to remove soft fruits, dehydrated fruits, defective fruits and foreign materials.

Specifications

Model	Belt Width (mm)	Air Nozzle	Air Pressure (MPa)	Air Consumption (m³/min)	Voltage	Power (kW)	Dimension (mm)	Unpacked Weight (kg)
HSF2	600	128	0.6-0.8	<3.2	220V~ 50/60Hz	4.1	4074×1682×2272	1013
HSF4	1200	256	0.6-0.8	<5.2	220V~ 50/60Hz	5.9	4183×2315×2272	1342

Technical Highlights

Customized Premium Solution for Blueberry Sorting

Adopting a compact single-layer belt sorting system for quick installation, it fits seamlessly with various production line layouts.
The high-efficiency vibrating feeder ensures blueberries are evenly spread in a single layer and greatly reduces fruit overlapping.
Specially designed flexible handling mechanism minimizes mechanical damage to delicate blueberries.
Constructed with food-grade stainless steel and fitted with quick-release belts for easy daily cleaning and maintenance, fully complying with strict food safety standards.
Fully enclosed sorting chamber and electrical cabinet with industrial dustproof design enable stable operation in harsh working environments.
Built-in integrated dust cleaning system ensures long-term continuous and reliable operation.
Modular structure with optional belt widths of 300/600/1200mm to match different production capacities.

AI-powered 5-in-1 High-performance Optical Detection System

Self-developed deep learning algorithm supports continuous iteration and optimization with new samples for enhanced defect recognition.
Integrated with HSI camera, high-resolution RGB color camera, high-stability air-cooled halogen light source and high-brightness LED lighting to realize multi-spectral collaborative imaging.
It comprehensively extracts features of color, size, shape and texture to achieve all-round accurate detection:
- Soft Fruit Detection: Accurately identify softened fruits by analyzing internal moisture and sugar content.
- Color Grading: Classify blueberries into dark blue, light blue and unripe grades according to maturity for consistent appearance.
- Size Grading: Sort fruits by diameter (e.g. fruits ≥12mm classified as premium large berries) to meet diverse market demands.
- Defect Inspection: Precisely reject moldy, shrivelled, cracked and scarred fruits.
- Foreign Material Removal: Effectively separate stems, insects, plastics and other impurities.

High-performance Pneumatic Ejector System

Optimized nozzles feature excellent durability, fast response and low air consumption.
Maintains high sorting accuracy even under high-capacity operation with stable performance.
Low rejection error rate helps cut overall operational costs.

15-inch Industrial Touch Control Panel

Intuitive human-machine interface with multi-language support for easy operation.
One-click switching of sorting parameters to adapt to different batches quickly.

Full-range Remote Support System

Supports remote access and real-time monitoring to keep track of equipment status anytime.
Built-in performance dashboard visualizes key operating data.
Equipped with online expert diagnosis and interactive troubleshooting to reduce downtime and improve maintenance efficiency.
