Belt Color Sorter
Created with Pixso.

HWFT Series Intelligent Optical Sorter Tailored Exclusively For Sorting Fresh-cut And Pre-fried French Fries, This Sorter Adopts An AI-powered Cost-effective RGB Camera Optical Sorting Solution.

HWFT Series Intelligent Optical Sorter Tailored Exclusively For Sorting Fresh-cut And Pre-fried French Fries, This Sorter Adopts An AI-powered Cost-effective RGB Camera Optical Sorting Solution.

Brand Name: PHOENIX
Model Number: HWFT AI-RGB Sorter
MOQ: 1
Price: Price Negotiable
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Detail Information
Place of Origin:
Hefei
Model:
HWFT3
Belt Width(mm):
1200
Air Nozzle:
240
Air Pressure(MPa):
0.6~0.8
Air Consumption(m³/min):
<3.6
Power(kW):
4.7
Unpacked Weight(kg):
1308
Highlight:

HWFT Series intelligent optical sorter

,

RGB camera optical sorting solution

,

fresh-cut French fries sorter

Product Description

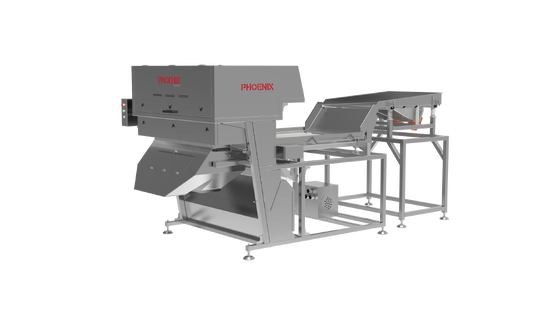

HWFT Series Intelligent Optical Sorter

Tailored exclusively for sorting fresh-cut and pre-fried French fries, this sorter adopts an AI-powered cost-effective RGB camera optical sorting solution. It performs full-view top inspection and dual-side line-scan detection on every single fry to accurately remove defective products and foreign materials, enabling strict quality control from raw materials to finished goods.

Integrating AI color recognition and defect detection technologies, this solution delivers an efficient, automated closed-loop system for sorting and quality management of fresh-cut and pre-fried French fries.


Specifications
Model Belt Width(mm) Air Nozzle Air Pressure(MPa) Air Consumption(m³/min) Voltage Power(kW) Dimension(mm) Unpacked Weight(kg)
HWFT3 1200 240 0.6~0.8 <3.6 220V~50/60Hz 4.7 4841×2581×2360 1308
Technical Features
Customized Optical Sorting Solution for French Fries
  • Dual-mode intelligent detection: Synchronous scanning from top and both sides of the conveyor for full coverage without blind spots.
  • Compact single-layer conveyor sorting system for quick installation and commissioning.
  • High-efficiency waterproof vibrating feeding system ensures single-layer even spreading of fries and greatly reduces overlapping and adhesion.
  • Food-grade stainless steel structure, together with sealed sorting chamber and electrical cabinet, withstands high-pressure washing and disinfection.
  • Quick-detachable belt design facilitates daily cleaning and maintenance, complying with stringent food safety standards.
  • Mature and integrated humidity control system ensures long-term stable operation of the equipment.
AI-Powered 4-in-1 Intelligent Defect Detection System
  • Self-developed deep learning algorithms with continuous iteration and optimization of defect recognition based on new samples.
  • High-resolution RGB color imaging system to capture tiny surface defects precisely.
  • High-brightness LED lighting system for clear imaging and stable signals.

Comprehensive detection coverage (industry-leading):

  • Color defects: Browning, green discoloration, dark spots and mildew
  • Shape defects: Breakage, malformation, off-size and residual potato peel
  • Processing defects: Scratches, dents, uneven cuts and starch exudation
  • Frying defects: Burnt ends, oil stains and blisters
  • Biological & foreign contaminants: Wood chips and packaging debris
High-Performance Pneumatic Ejector System
  • Optimized structural design with outstanding durability, fast response and low air consumption.
  • Maintains accurate rejection and stable performance even under high-capacity sorting conditions.
  • Effectively reduces false rejection rate and overall operating costs.
15-inch Industrial Touch Screen Control System
  • Intuitive human-machine interface with one-click multi-language switching.
  • Rapid switching of sorting parameters to adapt to diversified production requirements.
  • All-round remote support:
    • Remote access and real-time monitoring
    • Performance data dashboard
    • Online professional diagnosis and maintenance guidance
