| Brand Name: | PHOENIX |

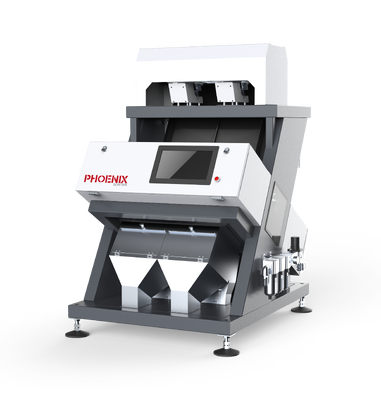

| Model Number: | 6SXZ-198C Color Sorter |
| MOQ: | 1 |
| Price: | Price Negotiable |
| Payment Terms: | L/C,D/A,D/P,T/T |
This color sorter is specially designed for plastic raw materials in forms of granules, fragments and pellets. It is widely applied in quality control for various plastic and metal materials. The machine accurately identifies subtle defects hardly detectable by human eyes, such as minor color differences, black spots and foreign contaminants. It supports high‑throughput production‑line operation and features multi‑stage re‑sorting to guarantee final product purity.
| Model | Power (KW) | Voltage/Hz | Air pressure (Mpa) | Air consumption (m³/min) | Dimension (LWH mm) |
|---|---|---|---|---|---|
| 6SXZ-99C | 1.2 | 220V 50Hz | 0.5-0.8 | < 1.1 | 1124*1466*1840 |
| 6SXZ-198C | 1.7 | 220V 50Hz | 0.5-0.8 | < 2.2 | 1469*1466*1840 |
| 6SXZ-297C | 2.4 | 220V 50Hz | 0.5-0.8 | < 3.3 | 1814*1466*1840 |
| 6SXZ-396C | 2.9 | 220V 50Hz | 0.5-0.8 | < 4.4 | 2159*1466*1840 |
| 6SXZ-495C | 3.6 | 220V 50Hz | 0.5-0.8 | < 5.5 | 2504*1466*1840 |
| 6SXZ-594C | 4.1 | 220V 50Hz | 0.5-0.8 | < 6.5 | 2962*1466*1840 |
| 6SXZ-693C | 4.7 | 220V 50Hz | 0.5-0.8 | < 7.6 | 3302*1466*1840 |
| 6SXZ-792C | 5.4 | 220V 50Hz | 0.5-0.8 | < 8.5 | 3652*1466*1840 |
| 6SXZ-891C | 6.1 | 220V 50Hz | 0.5-0.8 | < 9.8 | 3992*1466*1840 |
| 6SXZ-990C | 6.8 | 220V 50Hz | 0.5-0.8 | < 10.9 | 4337*1466*1840 |
High‑Dimensional HDR Industrial Camera — Imaging Master for Full‑scale Details Equipped with a miniaturized machine‑vision system integrating image acquisition and real‑time processing. Even under high‑speed capture modes, the sorter precisely tracks each piece of material and reliably captures key feature data to meet stringent sorting requirements.
Distortion Correction Technology — Ultra‑low Distortion for Enhanced Precision Combining advanced optical design and intelligent algorithm models, it performs high‑precision distortion correction on captured images to restore the true geometric profile of materials. It delivers solid data foundation for subsequent inspection and enables more accurate sorting judgments.
AI Sorting Solution — Brain‑like Recognition with Powerful Computing Performance Simulating human “vision‑plus‑cognition” recognition logic, it delivers strong anti‑interference capability to extract multi‑dimensional material features and conduct deep‑learning comparison & anomaly judgment. A dedicated NPU AI chip provides robust computing power for high‑speed production lines, ensuring real‑time inference and rapid response.
Ruize Cloud Platform — Model Factory for Intelligent Iteration Built‑in self‑developed inspection model library with over 30 ready‑to‑use algorithm models covering diverse materials and sorting standards. Online calling and flexible configuration endow the sorter with continuously‑evolving brain‑like thinking to adapt to variable production demands.
Dynamic Ejector Valve System — High‑productivity & Flexible Adaptability Adopting intelligent multi‑channel parallel control, the valves feature agile opening‑closing and microsecond‑level response to precisely reject defective products. It copes smoothly with fluctuating throughput, maintains stable and efficient operation, and supports hassle‑free production expansion.
