Precision Detection AI SWIR Sorter Machines PET Bottle Sorting Machine

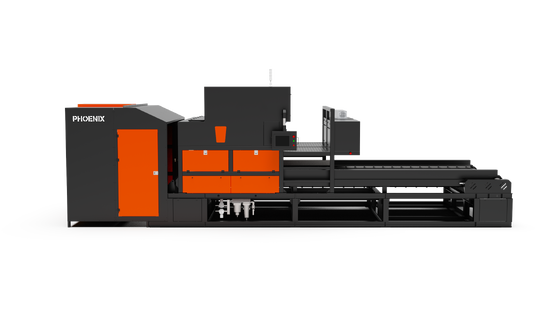

Name: Precision Detection AI SWIR Sorter Machines PET Bottle Sorting Machine
Brand: HEFEI RAY SIGHT VISION TECHNOLOGY CO., LTD
SKU: HPB AI-SWIR Sorter
Availability: InStock

Brand Name:	PHOENIX
Model Number:	HPB AI-SWIR Sorter
MOQ:	1
Price:	Price Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Hefei

Display:

High Resolution Touch Screen

Recognition Method:

Image Recognition, Using AI Models

Control System:

PLC With Touch Screen Interface

Dimension (mm):

9600×2000×2900

Unpacked Weight (kg):

4000

Power (kW):

Highlight:

AI SWIR Sorter Machines

Precision Detection SWIR Sorter Machines

SWIR PET Bottle Sorting Machine

Product Description

HPB AI-SWIR SorterAI Powered Precision Detection By Color, Polymer, Label And Shape: Recovery Of PET Bottles And Other Plastic Bottles

Technical Features

Technical Features
- Dual-Sensor Simultaneous Detection
  - Superior InGaAs-SWIR Camera System detects polymer types (PET/HDPE/PP, etc.) based on molecular composition
  - High-resolution RGB Camera System detects color variations (clear/blue/green/contaminated bottles)
- AI Deep Learning
  - Automatically classifies bottles, caps, labels and contaminants (metal, silicone)
  - Self-learning for new materials and complex patterns (e.g., printed-label bottles)
  - Adapts to challenging scenarios (reflective/black/crushed bottles)
- High-Performance Belt Sorting
  - Modular belt system: 2-6 tons/hour capacity
  - 88-224 nozzles with ≤1ms response & ±2mm ejection accuracy
  - Modular design of belt width from 1200 to 2800mm (1200/2000/2800) provides processors more flexibility

Precision Detection AI SWIR Sorter Machines PET Bottle Sorting Machine 0

Specifications

Model	Belt Width (mm)	Air Nozzle	Throughput (t/h)	Air Pressure (MPa)	Air Consumption (m³/min)	Power (kW)	Unpacked Weight (kg)	Dimension (mm)
HPB1	1200	88	1.5~3.0	0.6~0.8	<3.5	7	4000	9600×2000×2900
HPB2	2000	160	3.0~4.0	0.6~0.8	<6.5	12	5000	9600×3200×2900
HPB3	2800	224	4.0~6.0	0.6~0.8	<9.0	16	6500	9600×4000×2900
