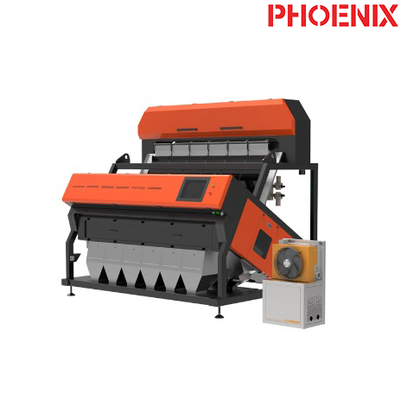

SWIR PET Flakes Sorter VPMC Plastic Color Sorter Machine With RGB Camera

Name: SWIR PET Flakes Sorter VPMC Plastic Color Sorter Machine With RGB Camera
Brand: HEFEI RAY SIGHT VISION TECHNOLOGY CO., LTD
SKU: VPMC SWIR Sorter
Availability: InStock

Brand Name:	PHOENIX
Model Number:	VPMC SWIR Sorter
MOQ:	1
Price:	Price Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Hefei

Model:

VPMC1

Chute:

Air Nozzle:

Throughput (t/h):

0.2-0.8

Air Pressure (MPa):

0.6-0.8

Air Consumption (m³/min):

<0.5

Highlight:

SWIR PET Flakes Sorter

VPMC Plastic Color Sorter Machine

RGB Camera Plastic Color Sorter

Product Description

VPMC SWIR Sorter Premium Detection Of Both Polymer And Color To Plastic Flakes; Separation Of PET Flakes From Non-PET Polymers

Technical Features

Tailored Sorting Solution for Polymer and Color Detection to Plastic Flakes
- Innovative high-capacity 2-layer vibratory feeder evenly distributes plastic flakes into a single layer to minimize overlapping
- Sealed scanning and control boxes provide machine with high-level dust protection
- Field-proven Dust Control System integrated maintains high operation reliability and performance consistency, and minimizes downtime
- Modular design of vertical frame size from 4 to 8 chutes (4/6/8) provides processors more flexibility
Premium Industrial Inspection System
- Dual-Band InGaAs-SWIR Camera System
  - Accurate detection to polymer types (PET/HDPE/PP/ABS/PC/PS/PMMA, etc.) based on molecular composition
  - Stable Air Cooling System maintains InGaAs sensor and Halogen Lighting System stabilities in hot environments
- High-Resolution RGB Camera System
  - High-precision identification of color variations and contaminants
  - High-Intensity LED Illumination System enables detection to subtle color differences, minimizing false rejects
High-Performance Ejector System
- Engineered for enhanced durability, optimized speed and air consumption
- Accurate rejection and reliable performance at high-capacity sorting
- Adjustable settings for typical plastic flake sizes (3-15 mm)
15-inch Industrial Touchscreen Control Panel
- Intuitive HMI with multilingual support
- Instant switching between product profiles
- Comprehensive remote support system
  - Remote Access and Monitoring
  - Real-time Performance Dashboard
  - Live Expert Diagnosis
  - Interactive Troubleshooting

Specifications

Model	Chute	Air Nozzle	Throughput (t/h)	Air Pressure (MPa)	Air Consumption (m³/min)	Power (kW)	Unpacked Weight (kg)	Dimension (mm)
VPMC1	1	64	0.2-0.8	0.6-0.8	<0.5	1.3	660	113519282385
VPMC4	4	256	0.8-3.0	0.6-0.8	<2.0	5.7	1241	193621102409
VPMC6	6	384	1.0-4.0	0.6-0.8	<3.0	7.6	1620	256621102409
VPMC8	8	512	2.0-6.0	0.6-0.8	<4.0	9.6	2035	325621102409
