| Brand Name: | PHOENIX |
| Model Number: | VG AI Optical Sorter |
| MOQ: | 1 |
| Price: | Price Negotiable |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |

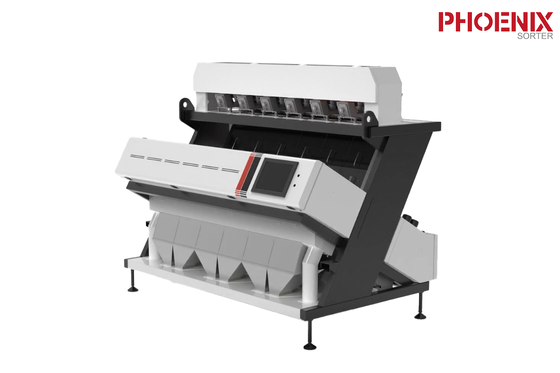

VG Is An Optical Sorting Machine Based On Fluorescence Spectroscopy Technology.
The VG is an optical sorting machine based on fluorescence spectroscopy technology.
It utilizes a hyperspectral camera, ultraviolet lighting system and deep learning technology to rapidly and accurately detect and remove corn and wheat contaminated with toxin.
Specially developed for processing corn and wheat with excessive toxin, the toxin index can be reduced by more than 90% after the first sorting, which can easily meet the requirements of toxin control standards, and ensure the quality.
As the pioneer and leader of deep learning technology for color sorting machines, provides deep learning modules for series toxin sorting machines to meet your sorting requirements.
Customized UHD lens can significantly improve imaging quality. The capture effect of slight color difference and low light sensation is excellent.
The maximum output can reach 12 t/h, which can meet the needs of large-scale processing such as grain trade and feed processing.
A customized UV light source developed for the sorting of toxin, which makes the extremely light toxin fluorescence reaction clearer. Toxic identification technology can accurately target toxin particles and safeguard the quality.
| Model | Chute | Air Nozzle | Air Pressure (MPa) | Air Consumption (L/min) | Power (kW) | Voltage | Dimension (LWH)(mm) | Weight*(kg) |
|---|---|---|---|---|---|---|---|---|
| VG1 | 1 | 64 | 0.6~0.8 | <1000 | 0.9 | 220V~ 50/60Hz | 1255*2199*2076 | 680 |
| VG4 | 4 | 256 | 0.6~0.8 | <2000 | 2.9 | 220V~ 50/60Hz | 2170*2199*2076 | 1150 |
| VG6 | 6 | 384 | 0.6~0.8 | <3000 | 4.4 | 220V~ 50/60Hz | 2800*2199*2076 | 1480 |
| VG8 | 8 | 512 | 0.6~0.8 | <4000 | 5.9 | 220V~ 50/60Hz | 3430*2199*2076 | 1840 |
| VG10 | 10 | 640 | 0.6~0.8 | <5000 | 7.3 | 220V~ 50/60Hz | 4070*2199*2076 | 2180 |
| VG12 | 12 | 768 | 0.6~0.8 | <6000 | 8.8 | 220V~ 50/60Hz | 4835*2199*2076 | 2550 |
