Rice Color Sorter Machine
Created with Pixso.

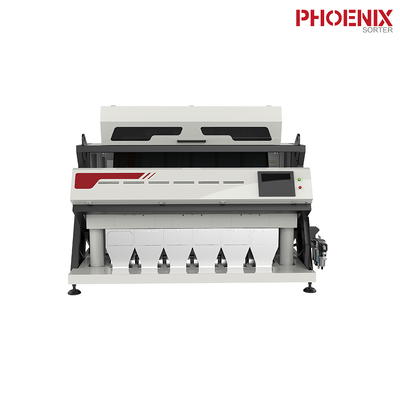

Classic Rice Color Sorter Machine High Precision Rice Sortex Machine

Classic Rice Color Sorter Machine High Precision Rice Sortex Machine

Brand Name: PHOENIX
Model Number: XVR AI Optical Sorter
MOQ: 1
Price: Price Negotiable
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Detail Information
Place of Origin:
Hefei
Model:
XVR6
Chute:
6
Air Nozzle:
528
Air Pressure (MPa):
0.6~0.8
Air Consumption (L/min):
<3000
Power (kW):
6.8
Highlight:

Classic Rice Color Sorter Machine

,

High Precision Rice Sortex Machine

,

Precision Rice Sortex Machine

Product Description

XVR Classic Rice Color Sorter Machine

The XVR is a versatile rice color sorter designed to efficiently sort various types of rice based on color differences, including yellow and chalky rice—either individually or simultaneously.

Product Description

XVR series rice color sorter machine integrates advanced visible light sorting technologies.

XVR series rice color sorter is mainly used for single sorting of yellow rice or single sorting of chalky rice. It can also be used for the same time sorting of yellow and chalky.

Enhanced Sorting Performance: Equipped with advanced core technology, the XVR pushes the boundaries of rice sorting capabilities, delivering superior precision and efficiency.

New Software Algorithm: A cutting-edge software upgrade significantly improves rejection rates while minimizing carryout ratios, ensuring even greater sorting accuracy.

Core Technologies
AI Intelligent Sorting

Internet of Things, mobile application, smart backup, and language switching.

High-precision Image Processing System

Timed imaging and recognition of the image processing system; it can magnify and recognize various colors, shapes, textures and other features through multi-camera and multi-spectral systems; rich in functions and easy to operate.

Dust Removal and Breakage Prevention

Adopts a feeding buffer device to achieve soft landing protection, prevent material backflow, and balance the breakage rate of rice materials.

Balanced Feeding

Adaptive material level system; the feeding speed of the vibrating feeding system is stable, ensuring the sorting effect.

Self-coordination Background

The brightness of the background light can be freely adjusted, and the background mode can be flexibly switched.


Classic Rice Color Sorter Machine High Precision Rice Sortex Machine 0

Specifications
Model Chute Air Nozzle Air Pressure (MPa) Air Consumption (L/min) Power (kW) Voltage Dimension (LWH)(mm) Weight* (kg)
XVR6 6 528 0.6~0.8 <3000 6.8 220V~ 50/60Hz 2800×2214×2100 1590
XVR8 8 704 0.6~0.8 <4000 9.1 220V~ 50/60Hz 3430×2214×2100 1963
XVR10 10 880 0.6~0.8 <5000 11.3 220V~ 50/60Hz 4104×2214×2100 2303
XVR12 12 1056 0.6~0.8 <6000 13.6 220V~ 50/60Hz 4904×2214×2100 2663
