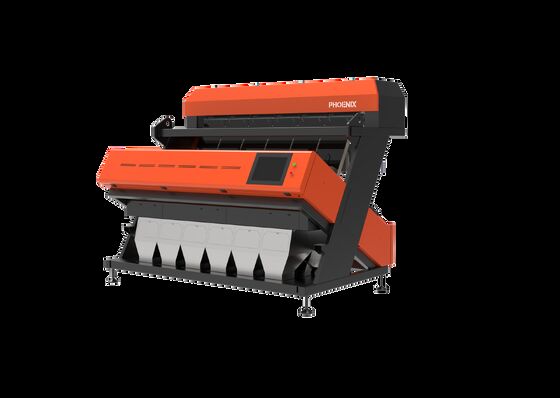

VPC Optical Sorter with High-Resolution RGB Imaging and Optional NIR Module for Precise Plastic Color Sorting

Name: VPC Optical Sorter with High-Resolution RGB Imaging and Optional NIR Module for Precise Plastic Color Sorting
Brand: HEFEI RAY SIGHT VISION TECHNOLOGY CO., LTD
SKU: VPC Optical Sorter
Availability: InStock

Brand Name:	PHOENIX
Model Number:	VPC Optical Sorter
MOQ:	1
Price:	Price Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Hefei

Model:

VPC4

Chute:

Air Nozzle:

256

Throughput (t/h):

1.5-3.0

Air Pressure (MPa):

0.6-0.8

Air Consumption (m³/min):

<2.0

Power (kW):

2.9

Unpacked Weight (kg):

1160

Highlight:

VPC Series Plastic Color Sorter

PET Plastic Colour Sorting Machine

HDPE Plastic Colour Sorting Machine

Product Description

VPC Optical Sorter | Color-Precise, Value-Added Sorting for Plastics

Faced with mixed plastic flakes, accurate separation by color and material is essential for enhancing product value and profitability in the recycling industry. The VPC Optical Sorter delivers cost-effective, customized sorting solutions using high-resolution RGB imaging and optional NIR technology to precisely identify and purify high-value plastic flakes, transforming mixed waste into profitable resources.

Technical Specifications

Model	Chute	Air Nozzle	Throughput (t/h)	Air Pressure (MPa)	Air Consumption (m³/min)	Power (kW)	Unpacked Weight (kg)	Dimension (mm)
VPC1	1	64	0.4-0.8	0.6-0.8	<1.0	0.9	680	1255×1670×1995
VPC4	4	256	1.5-3.0	0.6-0.8	<2.0	2.9	1160	2170×1823×2007
VPC6	6	384	2.0-4.0	0.6-0.8	<3.0	4.4	1390	2438×1823×2007
VPC8	8	512	3.0-6.0	0.6-0.8	<4.0	5.9	1750	3064×1823×2007
VPC10	10	640	4.0-8.0	0.6-0.8	<5.0	7.3	2138	3734×1823×2007

Key Advantages

Significant Economic Benefits: Optimizes investment and operating costs while improving material purity and value for rapid ROI in recycling pre-processing plants.
Precise Professional Sorting: Customized for plastic flake color sorting with optional NIR system for identifying hard-to-distinguish materials like pale yellow, light blue flakes, and low-density aluminum.
Stable Reliable Operation: Fully sealed, dust-proof construction with integrated dust control system for continuous performance in harsh recycling environments.
Flexible Capacity Adaptation: Modular design with configurable sorting chutes (4 to 10 channels) for flexible selection and future expansion based on production needs.

Core Technologies

Intelligent Optical Detection System

High-Resolution RGB Cameras: Capture subtle color variations and surface defects on plastic flakes
Optional NIR Camera Module: Utilizes near-infrared spectral characteristics to penetrate surface color interference for accurate material identification
AI Deep Learning Algorithms: Self-learning capabilities continuously optimize recognition models, improving sorting accuracy with use
High-Brightness LED Lighting: Provides uniform, stable illumination for consistent imaging quality

High-Efficiency Execution & Ejection System

Optimized Vibratory Feeder: Ensures single-layer, even distribution of flakes, reducing overlap for accurate detection
High-Performance Pneumatic Ejectors: Fluid-optimized design guarantees high ejection speed and precision while reducing compressed air consumption

Intelligent Control & Operation

15-inch Industrial Touchscreen: Intuitive multi-language HMI for clear parameter setup and one-click switching between sorting modes
Comprehensive Remote Support System:
- Real-time monitoring and data dashboard for remote equipment status access
- Online expert diagnostics for rapid problem identification
- Interactive troubleshooting guides for on-site issue resolution

Ideal Applications

The VPC Optical Sorter is ideal for plastic recycling pre-processing plants, resource recovery companies, and operations seeking to extract high-purity, high-value single-type plastics from mixed waste. It serves as a core solution for upgrading product grades and expanding profit margins.

Let Color Create Value, Let Sorting Be Smarter. Choose VPC to Begin Your Efficient and Precise Plastic Recycling Journey.
