Fruit Sorter Machine
Created with Pixso.

AI-RGB Cashew Colour Sorting Machine PX Four View Cashew Color Sorter

AI-RGB Cashew Colour Sorting Machine PX Four View Cashew Color Sorter

Brand Name: PHOENIX
Model Number: PX AI-RGB
MOQ: 1
Price: Price Negotiable
Payment Terms: D/A,D/P,T/T,Western Union,MoneyGram,L/C
Detail Information
Place of Origin:
Hefei
Model:
PX AI-RGB
Material:
Stainless Steel
Recognition Method:
Image Recognition, Using AI Models
Display:
High Resolution Touch Screen
Belt Width (mm):
300
Air Nozzle:
64
Air Pressure (MPa):
0.6~0.8
Power (kW):
3.2
Highlight:

AI-RGB Cashew Colour Sorting Machine

,

Four View Cashew Color Sorter

,

AI-RGB Cashew Color Sorter

Product Description

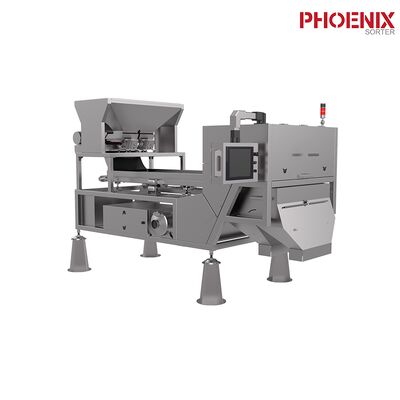

PX Four-View Cashew Colour Sorting Machine

The  four-view cashew colour sorting machine can detect materials in 360 degrees to meet your stricter sorting requirements. The belt design effectively reduces the damage of cashew nuts during the sorting process. Get in touch with the  team for a tailored solution for cashew sorting.

Product Description

The PX series is designed for the professional sorting and processing of nuts, using a new four-dimensional integrated recognition technology and high-end infrared recognition technology. With a strong combination of software and hardware, it can sort nuts with crushed shells, shell-wrapped kernel, diaphragma juglandis, small lesions, small atrophy and other difficult sorting problems. Non-destructive protection during the full process, slow and gradual buffering design, care for every material. Non-destructive processing present the best sorting effect for users.

Configuration Options:

PX: Single-lens dual-band infrared imaging+multi-dimensional camera

PX: Dual-lens dual-band infrared imaging+multi-dimensional camera

Core Technologies

Adopting high-end customized infrared configuration, the sorting effect of non-kernel impurities is better, and the ultimate quality can be easily achieved.

Non-destructive protection during the full process, slow and gradual buffering design care for every material, truly achieve non-destructive processing.

Unique four-dimensional ultra definition integrated technology, which can identify material details, color differences, and texture differences more accurately.

20 billion level self-collected open source material database, which is industry leading and also can be shared among users.

The industry-leading multi-dimensional deep learning recognition technology can solve the problems of internal and external impurity sorting better.

Sorting Applications

AI-RGB Cashew Colour Sorting Machine PX Four View Cashew Color Sorter 0
Specifications
Model Belt Width (mm) Air Nozzle Air Pressure (MPa) Air Consumption (m³/min) Voltage Power (kW) Dimension (mm) Unpacked Weight (kg)
PX 1 300 64 0.6~0.8 <1.2 220V ~ 50/60Hz 3.2 3385*1251*2127 710
PX 2 600 128 0.6~0.8 <2.4 220V ~ 50/60Hz 3.6 3385*1826*2127 881
PX 4 1200 256 0.6~0.8 <3.6 220V ~ 50/60Hz 4.4 3385*2426*2127 1121
