The VR RGB Optical Sorting System, Equipped With Standard 64 Pneumatic Ejector Valves, Is Custom-developed For Rice Sorting. It Integrates High-definition RGB Imaging, High-brightness LED Lighting,

The VR RGB Optical Sorting System, Equipped With Standard 64 Pneumatic Ejector Valves, Is Custom-developed For Rice Sorting. It Integrates High-definition RGB Imaging, High-brightness LED Lighting,

Brand Name:	PHOENIX
Model Number:	VR RGB Sorter
MOQ:	1
Price:	Price Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Hefei

Model:

VR10

Chute:

Voltage:

220V ~ 50/60Hz

Dimension (L*W*H) (mm):

4070*2199*2076

Power (kW):

7.3

Air Consumption (L/min):

<5000

Air Pressure (MPa):

0.6~0.8

Air Nozzle:

640

Weight* (kg):

2180

Highlight:

RGB optical rice sorter

64-valve pneumatic sorting system

high-definition beans color sorter

Product Description

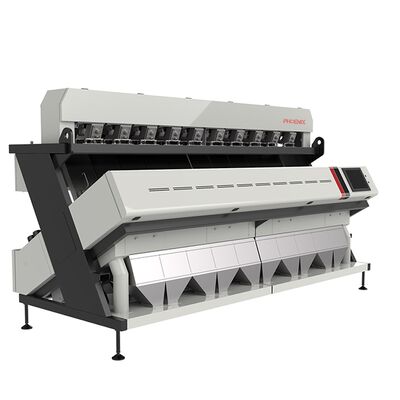

VR RGB Optical Sorter | Classic Benchmark for Rice Color Sorting

The VR RGB Optical Sorter is a best-selling classic in the rice color sorter family and a benchmark for standard rice sorting applications. Each channel is equipped with 64 pneumatic nozzles and features a cost-effective RGB camera-based optical sorting system, delivering high-precision sorting at an excellent price-performance ratio.

Model	Chute	Air Nozzle	Air Pressure (MPa)	Air Consumption (L/min)	Power (kW)	Voltage	Dimension (LWH) (mm)	Weight* (kg)
VR1	1	64	0.6~0.8	<1000	0.9	220V ~ 50/60Hz	125521992076	680
VR4	4	256	0.6~0.8	<2000	2.9	220V ~ 50/60Hz	217021992076	1150
VR6	6	384	0.6~0.8	<3000	4.4	220V ~ 50/60Hz	280021992076	1480
VR8	8	512	0.6~0.8	<4000	5.9	220V ~ 50/60Hz	343021992076	1840
VR10	10	640	0.6~0.8	<5000	7.3	220V ~ 50/60Hz	407021992076	2180
VR12	12	768	0.6~0.8	<6000	8.8	220V ~ 50/60Hz	483521992076	2550

Key Advantages

Tailored for rice, economical and efficient

High-frequency vibrating feeder ensures a single-layer, evenly distributed flow of rice kernels, minimizing overlap and maximizing sorting accuracy.

Sealed sorting chamber and electrical box with industrial-grade dustproof design, capable of operating reliably in high-dust environments.

Integrated dust control system – mature and reliable – ensures stable, long-term operation.
Flexible modular design for different capacities

Available chute configurations: 1 / 4 / 6 / 8 / 10 / 12 – from small-scale processing to mass production, configured as needed.
3-in-1 optical detection system (cost‑effective)

High‑resolution RGB camera + high‑intensity LED illumination – accurately identifies defects based on color, shape, and size:
- Discolored kernels: yellow, red, dark spots / black spots
- Diseased / moldy kernels
- Broken / cracked kernels
- Immature / green kernels
- Foreign materials: rice husks, straw, stones, glass, plastic, metal
High‑performance pneumatic ejector system

Optimized structural design ensures durability, fast response, and low air consumption.

Accurate rejection even at high throughput, significantly reducing false‑rejection rates and lowering total operating costs.
Intelligent control & remote support

15‑inch industrial touchscreen: intuitive HMI, one‑key language switching, quick recall of product sorting parameters.

Comprehensive remote support system:
- Remote access and real‑time monitoring
- Performance data dashboard
- Online expert diagnostics
- Interactive troubleshooting
