Fruit Sorter Machine
Created with Pixso.

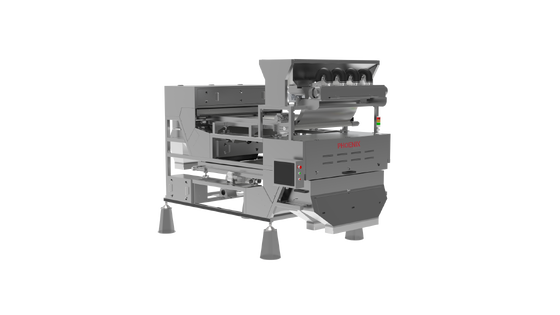

HD Series Intelligent Optical Sorter AI-powered Accurate Detection Of Visible Defects

HD Series Intelligent Optical Sorter AI-powered Accurate Detection Of Visible Defects

Brand Name: PHOENIX
Model Number: HD AI Optical Sorter
MOQ: 1
Price: Price Negotiable
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Detail Information
Place of Origin:
Hefei
Model:
HD4
Unpacked Weight (kg):
1917
Dimension (mm):
3641×2140×2804
Power (kW):
7.9
Voltage:
220V~50/60Hz
Air Consumption (m³/min):
<4.1
Air Pressure (MPa):
0.6~0.8
Highlight:

AI-powered fruit sorter machine

,

HD Series optical defect detector

,

intelligent fruit defect sorter

Product Description
HD Series Intelligent Optical Sorter
Cost-effective Choice for Pecan Pre-Sorting | AI-powered Accurate Detection of Visible Defects

The pre-sorting process directly determines the production efficiency and operational costs in pecan processing. Tailored for this application, the HD Series intelligent optical sorter is equipped with cost-effective RGB cameras and self-developed deep learning algorithms. It enables continuous algorithm iteration with new samples, so its defect recognition capability keeps improving alongside production data. Achieve tangible cost reduction and efficiency improvement on your production line with lower investment.

Specifications
Model Belt Width (mm) Air Nozzle Air Pressure (MPa) Air Consumption (m³/min) Voltage Power (kW) Dimension (mm) Unpacked Weight (kg)
HD2 600 256 0.6~0.8 <2.0 220V~50/60Hz 6.4 3641×1540×2804 1376
HD4 1200 512 0.6~0.8 <4.1 220V~50/60Hz 7.9 3641×2140×2804 1917
Technical Features
Optimized for Pecan Pre-Sorting with Balanced Performance & ROI

Designed specifically for pecan pre-sorting, it focuses on visible defect identification and sorting, delivering a high-cost-performance solution to meet core requirements of the pretreatment process.

  • Innovative Dual-layer Belt Sorting System
    The upper primary sorting belt efficiently removes all potentially defective products (minor false rejection acceptable). The lower recheck belt re-sorts rejected materials and recycles qualified nuts precisely, minimizing loss of good products.
  • High-efficiency Vibratory Feeding System
    Spreads materials evenly and greatly reduces material overlapping, effectively improving sorting accuracy.
  • Full Food-grade Stainless Steel Body
    Complies with global food safety and hygiene standards, adapting to rigorous production environments.
  • Sealed Sorting Chamber & Electrical Cabinet
    Industrial dustproof design ensures long-term stable operation in dusty working conditions.
  • Quick-detachable Belt Structure
    Facilitates easy maintenance and cleaning to meet stringent hygiene standards.
  • Proven Dust Protection System
    Guarantees consistent operation and stable sorting performance all the time.
  • Modular Design
    Available in two belt widths: 600 mm and 1200 mm, flexibly matching different production capacity demands.
AI-powered 4-in-1 Intelligent Sorting System

Adopts independently developed deep learning algorithms with ongoing self-learning from new samples, delivering dynamically upgraded recognition performance.

  • High-resolution RGB color imaging system captures subtle defect features accurately.
  • High-brightness LED lighting system ensures clear, uniform and stable imaging.

This economical solution realizes multi-dimensional precise inspection, covering all common visible defects of pecans:

  • Color Defects: Dark spots, oxidation discoloration, abnormal shades and shell color deviation
  • Shape Defects: Broken pieces, shrunken nuts, malformation, out-of-spec size and irregular shapes
  • Processing Defects: Residual shell, exposed kernel, surface attachments and incomplete kernel
  • Biological Contamination: Wormholes, visible mildew spots, rotten and moldy kernels
  • Foreign Matter Contamination: Insect bodies, stems, leaves, stones, glass fragments and other impurities
High-performance Pneumatic Ejector System

The optimally designed ejector features outstanding durability, fast response and low air consumption. It maintains precise rejection and stable performance even under high throughput, greatly lowering false rejection rate and overall operational costs.

15-inch Industrial Touchscreen Control System
  • User-friendly intuitive interface with multi-language support for easy operation.
  • One-click activation of dedicated sorting parameters for pecans, enabling quick switch between varieties and working conditions.
Comprehensive Remote Support System
  • Remote access and real-time monitoring
  • Performance dashboard for clear operational status overview
  • Online expert diagnosis for rapid fault location
  • Interactive troubleshooting to reduce downtime and improve maintenance efficiency
