VG Series Intelligent Optical SorterEquipped With AI-powered RGB/MSI Smart Camera Combination,

Brand Name:	PHOENIX
Model Number:	VG AI Optical Sorter
MOQ:	1
Price:	Price Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,

Detail Information

Product Description

Detail Information

Place of Origin:

Hefei

Model:

VG4

Air Nozzle:

256

Air Pressure (MPa):

0.6~0.8

Power (kW):

2.9

Voltage:

220V~ 50/60Hz

Dimension (LWH)(mm):

2170*2199*2076

Weight*(kg):

1150

Highlight:

AI-powered beans color sorter

RGB/MSI smart camera sorter

intelligent optical beans sorter

Product Description

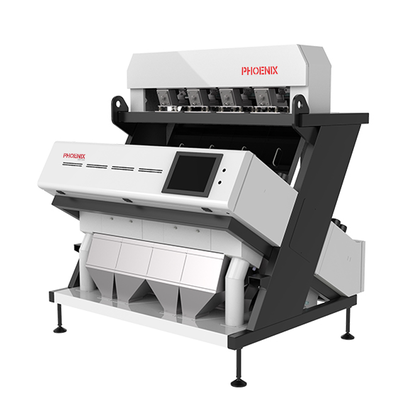

VG Series Intelligent Optical Sorter

Equipped with AI-powered RGB/MSI smart camera combination, it accurately identifies defects of lentils from multiple dimensions including color, size, shape and texture. The self-developed deep learning algorithm enables continuous iteration with new samples to steadily enhance detection performance.

Specifications

Model	Chute	Air Nozzle	Air Pressure (MPa)	Air Consumption (L/min)	Power (kW)	Voltage	Dimension (LWH)(mm)	Weight*(kg)
VG1	1	64	0.6~0.8	<1000	0.9	220V~ 50/60Hz	125521992076	680
VG4	4	256	0.6~0.8	<2000	2.9	220V~ 50/60Hz	217021992076	1150
VG6	6	384	0.6~0.8	<3000	4.4	220V~ 50/60Hz	280021992076	1480
VG8	8	512	0.6~0.8	<4000	5.9	220V~ 50/60Hz	343021992076	1840
VG10	10	640	0.6~0.8	<5000	7.3	220V~ 50/60Hz	407021992076	2180
VG12	12	768	0.6~0.8	<6000	8.8	220V~ 50/60Hz	483521992076	2550

Technical Highlights

Tailored High-efficiency Sorting Solution for Lentils

The high-efficiency vibrating feeder ensures materials are spread in a single uniform layer, greatly reducing material overlapping.
Fully enclosed sorting chamber and electrical cabinet with industrial-grade dustproof design, delivering reliable performance in high-dust working environments.
Built-in integrated dust removal control system for long-term stable operation.
Modular chutes available in 1/4/6/8/10/12 channel configurations, flexibly adapting to various production capacity requirements.

AI-empowered 4-in-1 Intelligent Optical Sorting System

Independently developed deep learning algorithm to continuously optimize defect recognition models with newly added samples.
High-resolution RGB color imaging system captures tiny imperfections precisely.
High-brightness LED lighting system guarantees clear and stable image acquisition.
Optional NIR cameras or InGaAs-SWIR infrared cameras to expand detection capabilities.

Boasting industry-leading defect detection performance, it accurately sorts out impurities and defective grains by color, size, shape and texture:

Discolored grains: mildewed, oxidized, immature and contaminated particles
Broken & cracked grains
Insect-damaged grains
Diseased grains: particles infected with fungal or bacterial spots
Foreign matters: straw, stones, glass, plastics, metals and other impurities

Customizable parameter settings for various lentil varieties with one-click mode switching.

High-performance Pneumatic Ejector System

Optimized structure balances durability, response speed and air consumption efficiency.

Maintains precise ejection and stable operation even under high-output conditions.

Effectively reduces false rejection rate and overall operating costs.

15-inch Industrial Touchscreen Control System

Intuitive human-machine interface with multi-language support.
One-click recall of sorting parameters for different products.
Comprehensive remote services: remote access & real-time monitoring, performance data dashboard, online expert diagnosis and interactive troubleshooting, for simpler and more reliable equipment maintenance.
